Valve Control Systems

4 Series HP Valve Controls

Cable connections for Orscheln MAR controls using 4 Series HP cable connections. Match the MAR control number to the correct FP cable connection.

Where this fits

This reference supports MAR controls shown with a 4 Series HP cable connection.

Additional information

Select either the MAR control or the matching FP cable end type. Cable selections need a custom length; control selections can be quoted directly with the selected part number.

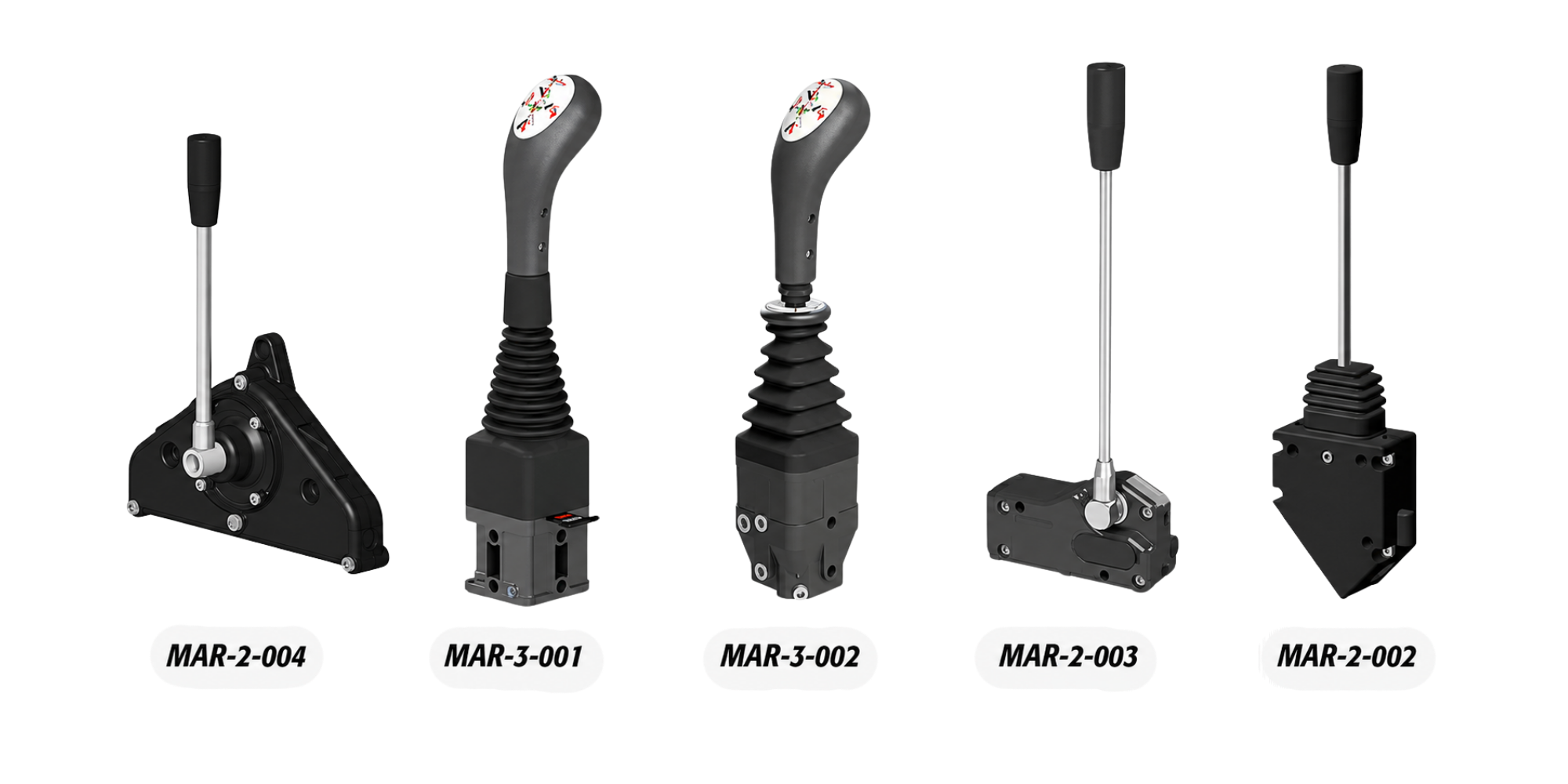

MAR-2-004, MAR-3-001, MAR-3-002, MAR-2-003, and MAR-2-002 mechanical valve controls. — **MAR valve controls**

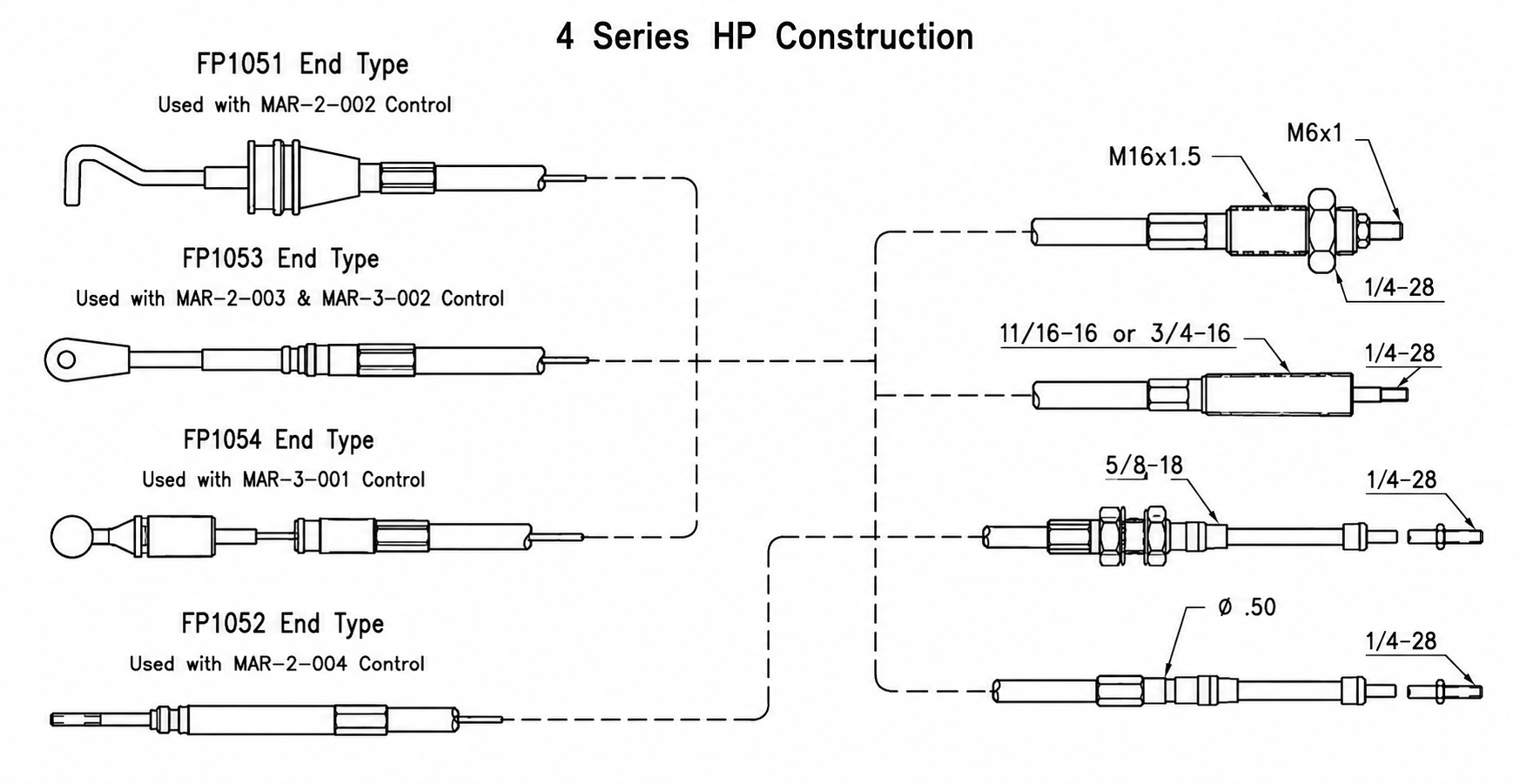

4 Series HP construction drawing showing FP1051, FP1052, FP1053, and FP1054 cable end types and their matching MAR controls. — **4 Series HP MAR cable end types**

Build-A-Part

Select cable part number

Choose the FP cable end type, select the valve end option, and enter the required cable length.

FP1051-????-???Complete before adding to quote. Missing: valve end option, length

Part number	Application	Control end
	FP1051 cableUsed with MAR-2-002 control. Select the valve end and overall length.	MAR-2-002
	FP1053 cableUsed with MAR-2-003 and MAR-3-002 controls. Select the valve end and overall length.	MAR-2-003 / MAR-3-002
	FP1054 cableUsed with MAR-3-001 control. Select the valve end and overall length.	MAR-3-001
	FP1052 cableUsed with MAR-2-004 control. Select the valve end and overall length.	MAR-2-004

Valve end option

Enter length

Enter value in whole numbers to complete part number.

Length (inches)

MAR valve controls

MAR control part numbers

Part number	Description
	MAR-2-002 control4 Series HP valve control shown with FP1051 cable end type.
	MAR-2-003 control4 Series HP valve control shown with FP1053 cable end type.
	MAR-3-002 control4 Series HP valve control shown with FP1053 cable end type.
	MAR-3-001 control4 Series HP valve control shown with FP1054 cable end type.
	MAR-2-004 control4 Series HP valve control shown with FP1052 cable end type.
