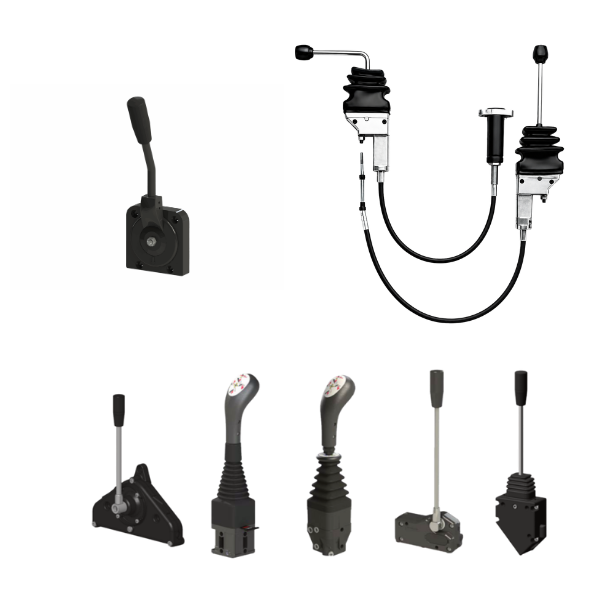

Valve Control Systems include Orscheln MAR controls, matching cable connections, and valve connection kits for complete remote hydraulic valve control setups.
Application fit
Valve Control Systems bring together MAR controls, valve connection kits, cable length, and mounting details for remote hydraulic valve control applications.
System options
System options connect the control, cable connection, valve connection kit, and required cable length into one quoting path.
Valve Control Systems are used when an operator control, cable connection, and hydraulic valve connection need to work together as a matched setup. These systems are commonly used on mobile equipment, construction equipment, agricultural equipment, dump body controls, industrial machinery, specialty vehicles, and other hydraulic control applications where the operator control is mounted away from the valve body.
Engineering fit
Applications involving an Orscheln MAR control, FP cable connection, valve control connection kit, or a combination of control and cable hardware fit this system category. Known replacement cables with a base number and length may fit the Valve Control Cables category instead.
Reference matching
Many Valve Control System options are selected by matching the control number to the correct cable connection or valve connection kit. Examples include FP1051 used with MAR-2-002, FP1052 used with MAR-2-004, FP1053 used with MAR-2-003 and MAR-3-002, FP1054 used with MAR-3-001, and FP1055 used with MAR-2-001. Valve connection kit options include MAR-4-001 and MAR-4-002 for DINOIL DN-BLB, MAR-4-005 for SALAMI VD06, MAR-4-006 for SALAMI VD8B, MAR-4-019 for BUCHER HDM 18, MAR-4-024 for VALNOVA, MAR-4-027 for WALVOIL SD 4/5/6, and MAR-4-049 for HYDROCONTROL HCD4.
Quote details
Control reference, cable connection reference, valve connection kit, cable length, mounting details, connection notes, and replacement photos help sales verify the system.
