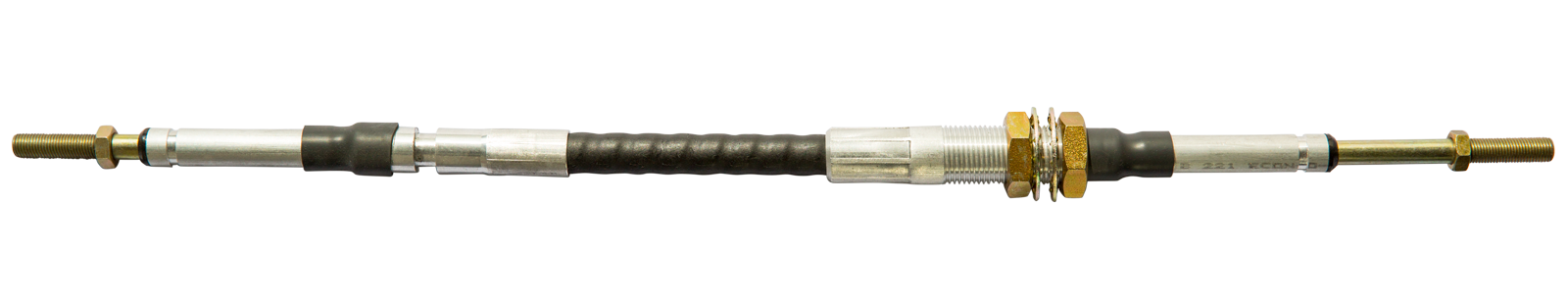

Largest push-pull cable series for high-load controls and applications that require 8 Series hardware.
8 Series provides the highest push and pull loads in this push-pull group, with a larger bend radius and heavier end hardware.
Review the high-load specification table, then use the builder to select cable type, travel, conduit hubs, and length.
Specifications
| Travel | Dim A | Dim B | Dim C | Dim D | Push | Pull |
|---|---|---|---|---|---|---|
| in (mm) | in (mm) | in (mm) | in (mm) | in (mm) | lb (N) | lb (N) |
| 1.0 (25.4) | 3.69 (93.7) | 5.56 (141.2) | 3.19 (81.0) | 5.06 (128.5) | 700 (3114) | 1000 (4448) |
| 2.0 (50.8) | 4.69 (119.1) | 7.06 (179.3) | 4.19 (106.4) | 6.56 (166.6) | 700 (3114) | 1000 (4448) |
| 3.0 (76.2) | 5.69 (144.5) | 8.56 (217.4) | 5.19 (131.8) | 8.06 (204.7) | 600 (2669) | 1000 (4448) |
| 4.0 (101.6) | 6.69 (169.9) | 10.06 (255.5) | 6.19 (157.2) | 9.56 (242.8) | 500 (2224) | 1000 (4448) |
| 5.0 (127.0) | 7.69 (195.3) | 11.56 (293.6) | 7.19 (182.6) | 11.06 (280.9) | 400 (1779) | 1000 (4448) |
| 6.0 (152.4) | 8.69 (220.7) | 13.06 (331.7) | 8.19 (208.0) | 12.56 (319.0) | 275 (1223.8) | 1000 (4448) |
| 7.0 (177.8) | 9.69 (246.1) | 14.56 (369.8) | 9.19 (233.4) | 14.06 (357.1) | 150 (667.5) | 1000 (4448) |
Temperature range: -65 to +225°F / -54 to +107°C standard; -65 to +300°F / -54 to +149°C HEFT 2.
Designed for low backlash and high efficiency.
Conduit color: dark maroon for HP Cable standard; satin black for HEFT 2.
Build-A-Part-Number
Begin by selecting standard or metric construction, then type or select values for each build-a-part placeholder.
Use the fields to manually input part number values if you know them.
Enter value in whole numbers to complete part number.
Need Hardware?
Browse the cable hardware page for 8 Series cable hardware, including clevises, ball joints, pivots, clamps, clip brackets, terminal eyes, stop collars, shims, slip link kits, and field hub kits.
