Transmission Shifters

Legacy Allison AT/MT/HT Shifters

Legacy T-handle and push button shifters for Allison AT, MT, HT, and related transmission models.

Where this fits

Use this page when replacing or configuring a legacy Allison shifter system for AT, MT, HT, V730, or related transmission models still in service.

Additional information

Legacy shifter systems are selected from the base shifter number, cable series, switch options, transmission connection kit configuration, and push-pull shift cable length.

Need the transmission-side connection hardware? View the 59005 universal transmission connection kit

Need a mounting tower, wedge, flange, or T-handle service kit? View shifter accessories

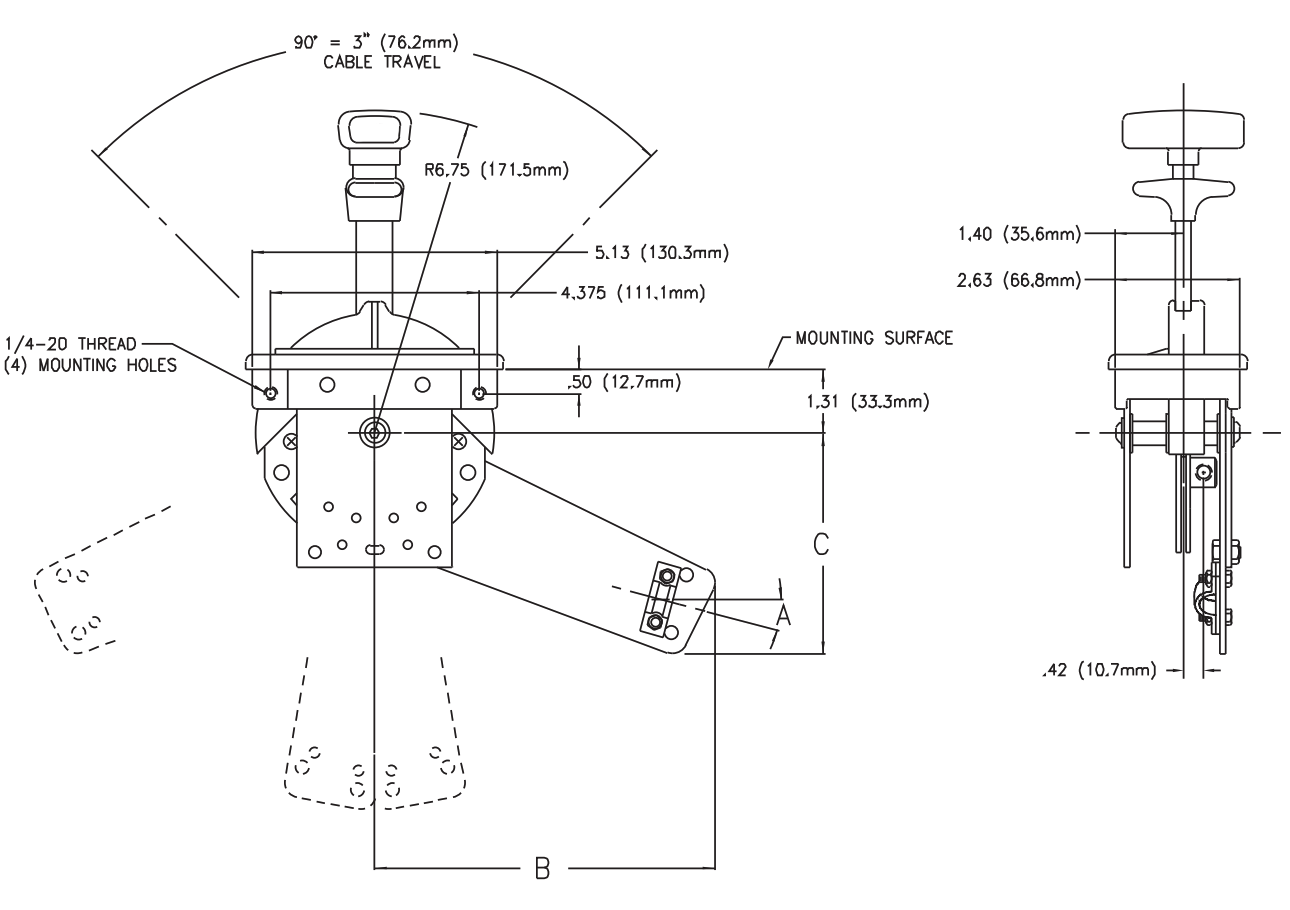

Legacy shifter dimensions

Bracket angle dimensions

Bracket angle ADimension BDimension C
15°7.12" (180.8mm)4.62" (117.3mm)
68°1.89" (48.0mm)7.89" (200.4mm)

Build-A-Part

Build a legacy shifter assembly number

Select the base number, then choose the assembly code options from charts 1 through 4.

?????-????Complete before adding to quote. Missing: base number, chart 1, ...
Base No.?????
-
Chart 1?
Chart 2?
Chart 3?
Chart 4?

Begin by expanding and selecting a base part number, then configure options

Chart 1: Control Mount / Reverse Position

Chart 1 control mount options showing reverse to front and reverse to rear positions.

Chart 2: Cable Hanger Bracket Position

Chart 2 cable hanger bracket position options for reverse to front and reverse to rear shifter configurations.

Chart 3: Cable Series

Chart 4: Electric Switch Option

Need the Cable?

Use the matching 4 or 6 Series shift cable.

Legacy Allison shifter systems commonly use 100-04333-Length or 100-06333-Length depending on the selected cable series. Choose the matching cable and enter the required length for RFQ review.

Build 100-04333-LengthBuild 100-06333-Length
