Larger positive lock cable for more demanding hand-operated controls, longer routing, or applications requiring 4 Series hardware.
This series pairs the Positive Lock handle with larger 4 Series cable and output hardware.
Use the HD Positive Lock builder for cable type, 4 Series code, travel, bulkhead or clamp fitting, fixed Positive Lock head code, and length.

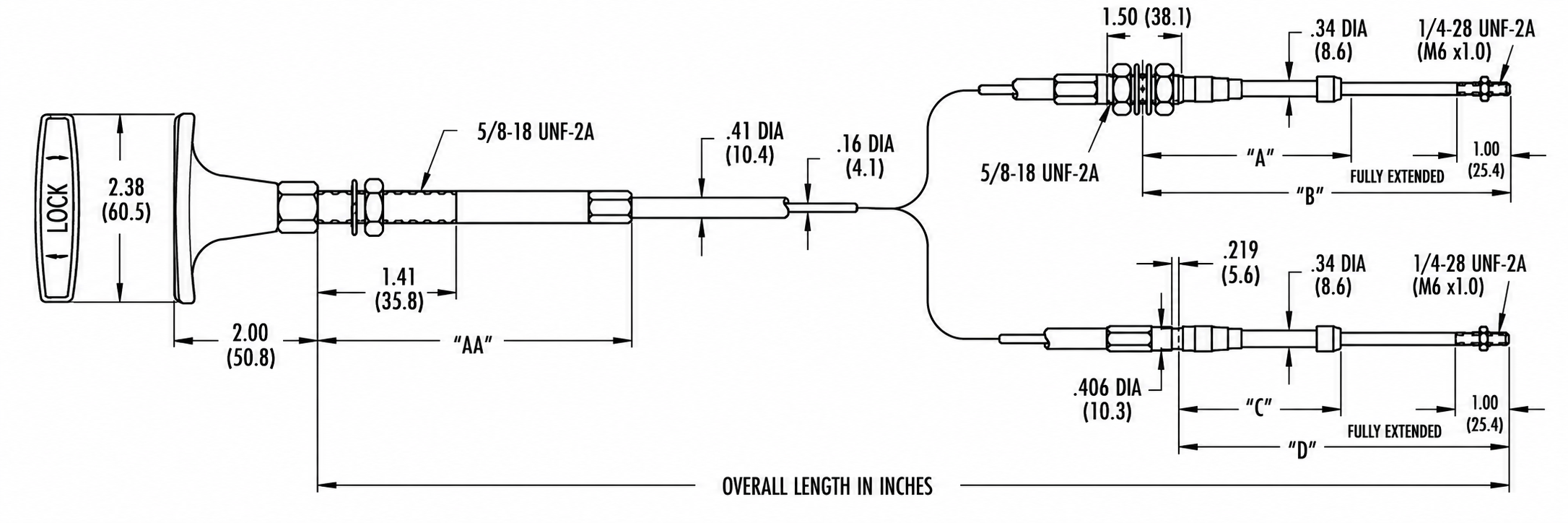

Specifications
| Travel | DIM AA | DIM A | DIM B | DIM C | DIM D | Push | Pull |
|---|---|---|---|---|---|---|---|
| in (mm) | in (mm) | in (mm) | in (mm) | in (mm) | in (mm) | lb (N) | lb (N) |
| 1.0 (25.4) | 5.25 (133.4) | 3.13 (79.5) | 5.19 (131.8) | 2.50 (63.5) | 4.56 (115.8) | 120 (534) | 120 (534) |
| 2.0 (50.8) | 5.25 (133.4) | 4.13 (104.9) | 7.19 (182.6) | 3.50 (88.9) | 6.56 (166.6) | 120 (534) | 120 (534) |
| 3.0 (76.2) | 5.25 (133.4) | 5.13 (130.3) | 9.19 (233.4) | 4.50 (114.3) | 8.56 (217.4) | 120 (534) | 120 (534) |
| 4.0 (101.6) | 7.25 (184.2) | 6.13 (155.7) | 11.19 (284.2) | 5.50 (139.7) | 10.56 (268.2) | 100 (445) | 120 (534) |
| 5.0 (127.0) | 7.25 (184.2) | 7.13 (181.1) | 13.19 (335.0) | 6.50 (165.1) | 12.56 (319.0) | 75 (334) | 120 (534) |
T-handle locks in either direction.
Build-A-Part-Number
Select standard or metric length format, then choose cable type, travel, conduit fitting type, and overall length for the fixed Positive Lock head format.
Use the fields to manually input part number values if you know them.
Enter value in whole numbers to complete part number.
Need Hardware?
Browse the cable hardware page for 4 Series cable hardware, including clevises, ball joints, pivots, clamps, clip brackets, terminal eyes, stop collars, shims, slip link kits, and field hub kits.
