Compact positive lock cable for lighter-duty hand controls that need twist-to-lock positioning.
This series pairs Positive Lock T-handle behavior with an exposed-core light-duty cable end.
Build the part number from cable type, fixed 3 Series light-duty format, travel, conduit size, fixed Positive Lock head code, conduit fitting type, and overall length.

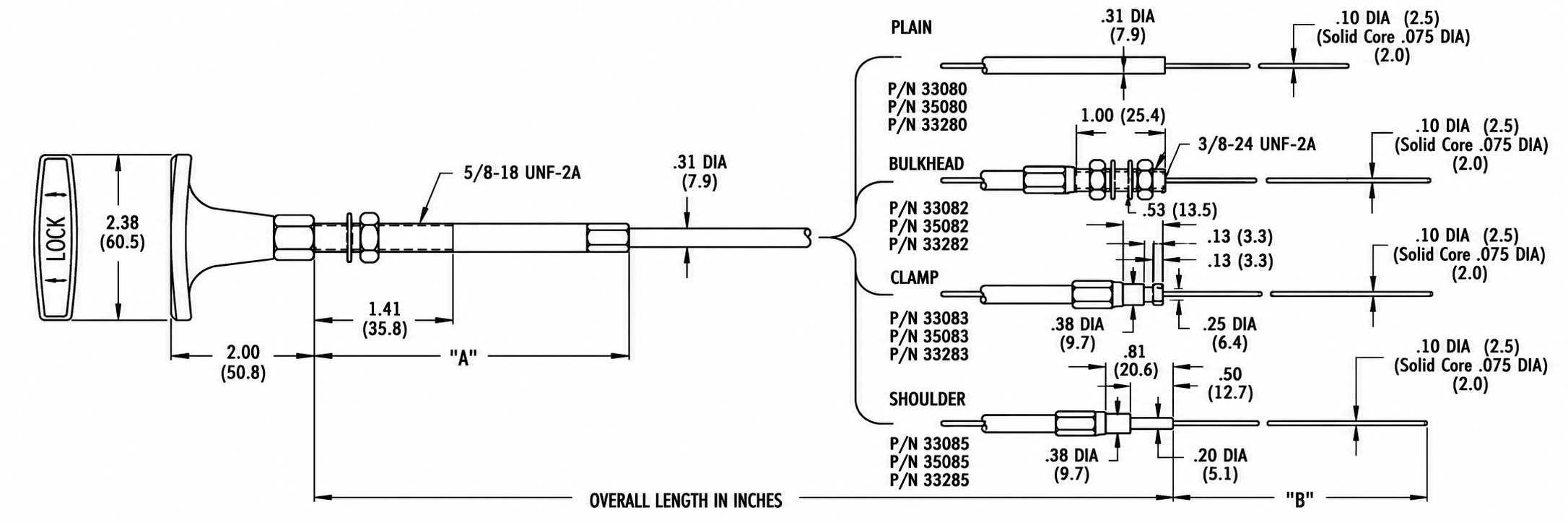

Specifications
| Travel | DIM AA | DIM BB |
|---|---|---|
| in (mm) | in (mm) | in (mm) |
| 3.0 (76.2) | 5.25 (133.4) | 5.00 (127.0) |
| 5.0 (127.0) | 7.25 (184.2) | 8.00 (203.2) |
T-handle locks in either direction.
Build-A-Part-Number
Select cable type, travel, conduit size, conduit fitting type, and overall length for the fixed Positive Lock head format.
Use the fields to manually input part number values if you know them.
Enter value in whole numbers to complete part number.
Need Hardware?
Browse the cable hardware page for 3 Series cable hardware, including clevises, ball joints, pivots, clamps, clip brackets, terminal eyes, stop collars, shims, slip link kits, and field hub kits.
