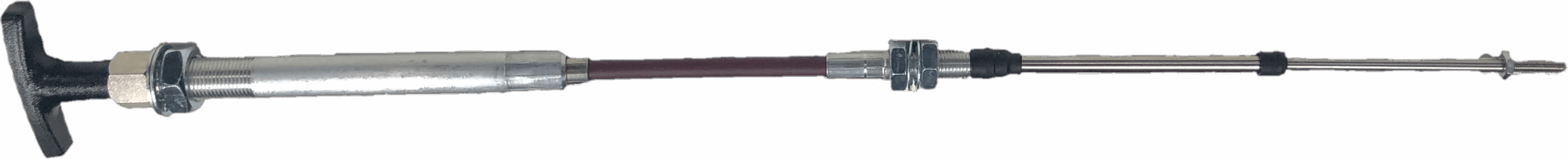

Heavier-duty 3 Series positive lock cable for manual controls that need a stronger assembly while keeping a compact cable size.
This series pairs the Positive Lock handle with a 3 Series threaded output rod.
Build the part number from cable type, series, travel, bulkhead or clamp conduit fitting, fixed Positive Lock head code, and overall length.

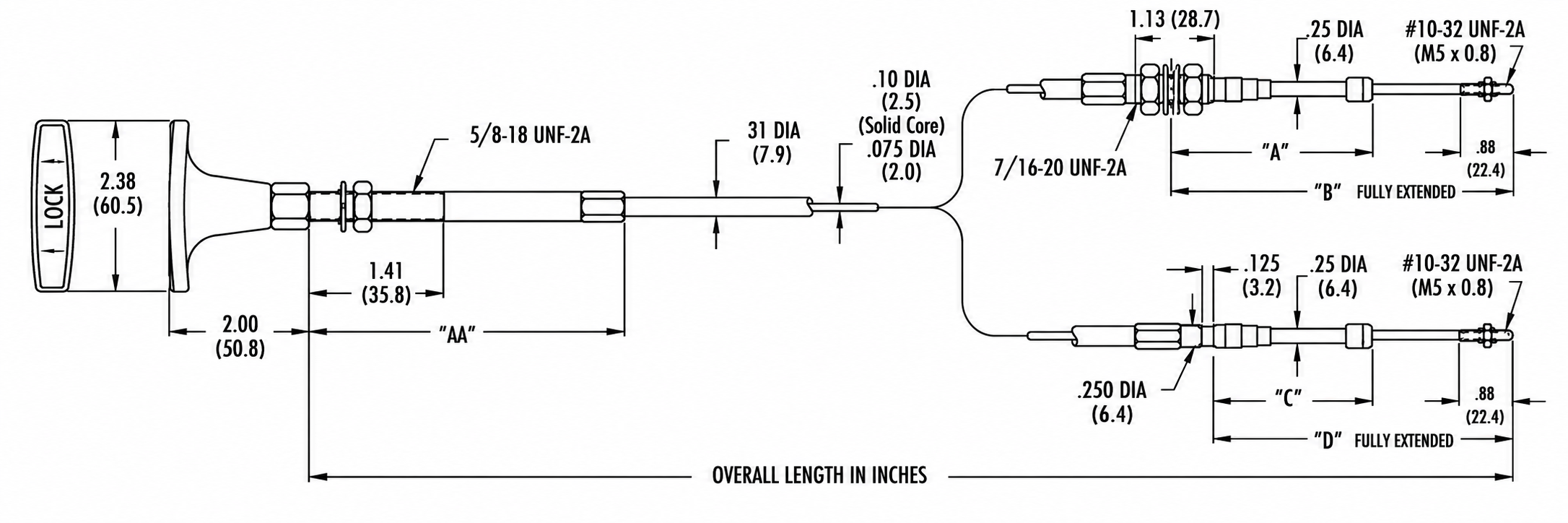

Specifications
| Travel | DIM AA | DIM A | DIM B | DIM C | DIM D | Push | Pull |
|---|---|---|---|---|---|---|---|
| in (mm) | in (mm) | in (mm) | in (mm) | in (mm) | in (mm) | lb (N) | lb (N) |
| 1.0 (25.4) | 5.25 (133.4) | 3.00 (76.2) | 4.94 (125.5) | 2.31 (58.7) | 4.25 (108.0) | 60 (267) | 60 (267) |
| 2.0 (50.8) | 5.25 (133.4) | 4.00 (101.6) | 6.94 (176.3) | 3.31 (84.1) | 6.25 (158.8) | 60 (267) | 60 (267) |
| 3.0 (76.2) | 5.25 (133.4) | 5.00 (127.0) | 8.94 (227.1) | 4.31 (109.5) | 8.25 (209.6) | 60 (267) | 60 (267) |
| 4.0 (101.6) | 7.25 (184.2) | 6.00 (152.4) | 10.94 (277.9) | 5.31 (134.9) | 10.25 (260.4) | 60 (267) | 60 (267) |
| 5.0 (127.0) | 7.25 (184.2) | 7.00 (177.8) | 12.94 (328.7) | 6.31 (160.3) | 12.25 (311.2) | 45 (200) | 60 (267) |
T-handle locks in either direction.
Build-A-Part-Number
Select standard or metric length format, then choose cable type, travel, conduit fitting type, and overall length for the fixed Positive Lock head format.
Use the fields to manually input part number values if you know them.
Enter value in whole numbers to complete part number.
Need Hardware?
Browse the cable hardware page for 3 Series cable hardware, including clevises, ball joints, pivots, clamps, clip brackets, terminal eyes, stop collars, shims, slip link kits, and field hub kits.
