Standard heavy-duty lever controls for rugged mechanical control applications, available with 13 inch or 9 inch handle base numbers.
This reference supports rugged lever-operated control without a push button detent release.

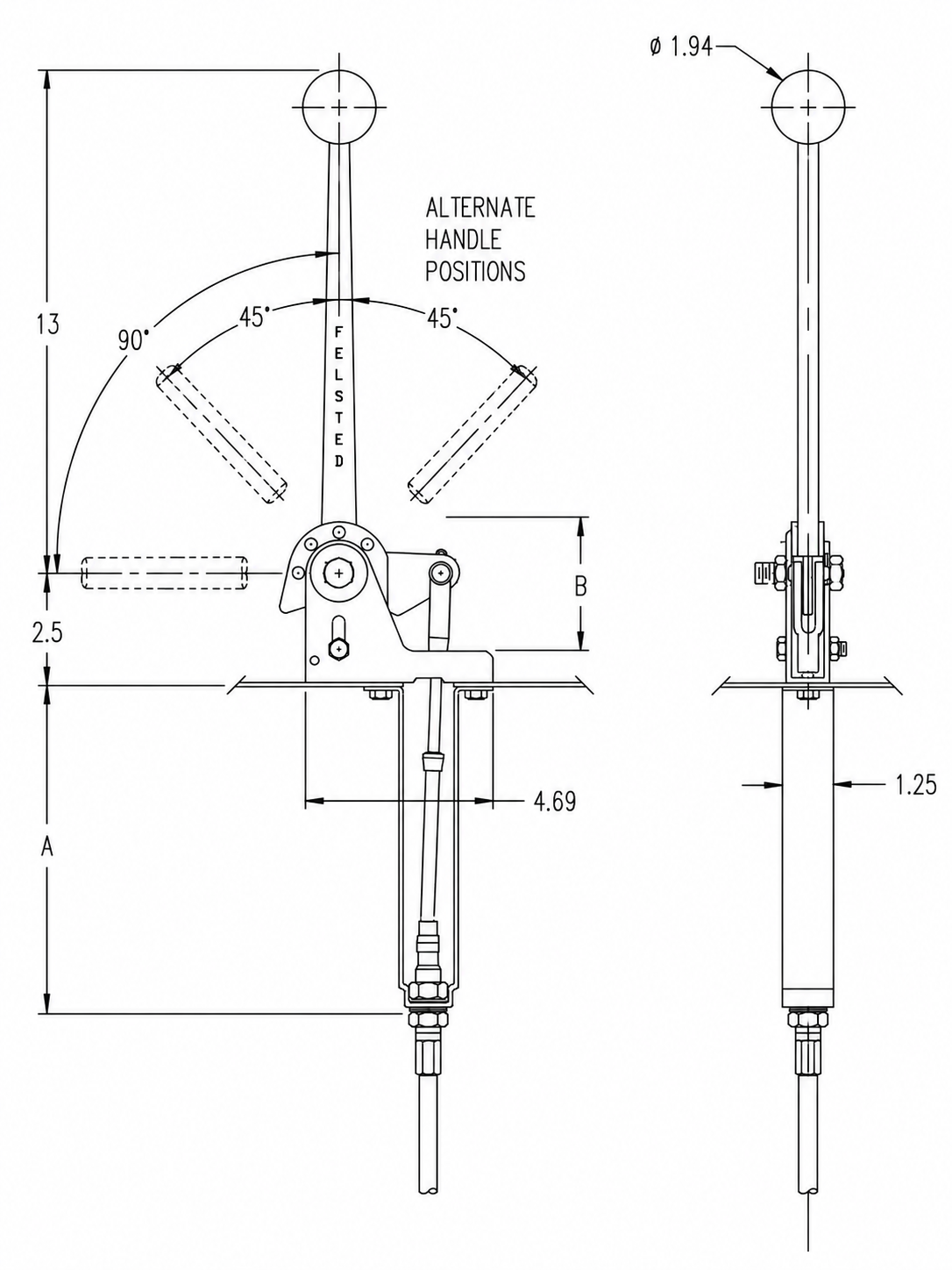

Build the assembly part number by choosing handle/base number, black knob option, cable series, and travel distance. The lever provides 5:1 mechanical advantage. Cables are selected separately, and all dimensions shown are in inches.
Build-A-Part
The lever base number and chart options define the assembly part number.
Recommended Cables
Cables are not included. Cable base number and required length complete the RFQ details.
| Cable part number | Dim A | Travel dim B | Cable series | Input max load |
|---|---|---|---|---|
| 100-04222-Length | 5 1/2" | 2" | 4 | 150 lb |
| 100-04223-Length | 5 1/2" | 2" | 4 | 150 lb |
| 100-04322-Length | 7" | 3" | 4 | 125 lb |
| 100-04323-Length | 7" | 3" | 4 | 125 lb |
| 100-06222-Length | 5 1/2" | 2" | 6 | 250 lb |
| 100-06223-Length | 5 1/2" | 2" | 6 | 250 lb |
| 100-06322-Length | 7" | 3" | 6 | 210 lb |
| 100-06323-Length | 7" | 3" | 6 | 210 lb |
