Fluid Level Indicators

Twist-Lock-F1

Compact locking fluid level indicator system for tube sizes up to 15 mm.

Where this fits

F1 supports engine-oil check applications that need a vibration-resistant locking T-handle and a fully calibrated indicator system.

Additional information

Supports polymer or metal routing with 3/8-inch, 12 mm, 1/2-inch, and 15 mm outside-diameter tube options. Standard operating temperature is -40°F to +225°F.

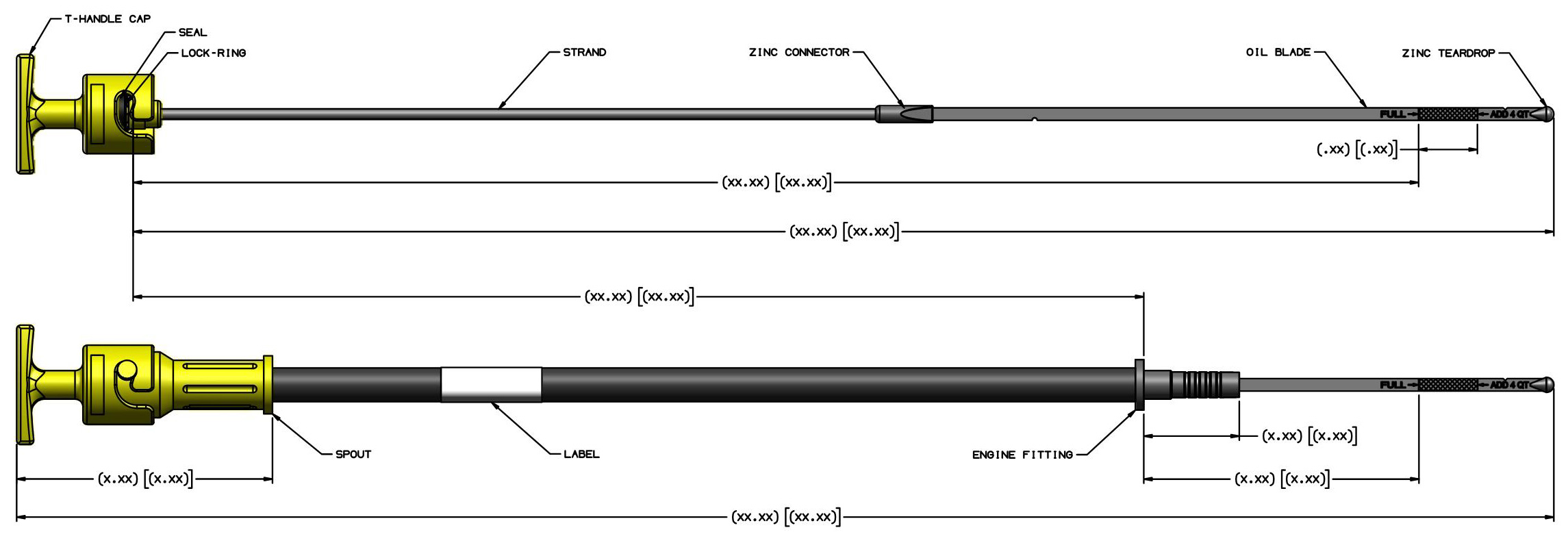

Technical drawing and dimensions for the Twist2Lock F1 fluid level indicator. — **Twist-Lock-F1 technical drawing**

Custom Fluid Level Indicator

Discuss your Twist-Lock-F1 build-out.

Contact Custom Control Cables with the application, tube size and routing, fluid type, temperature range, handle preference, and any required blade markings or end fittings.
