Fluid Level Indicators

Push-2-Seal

Customizable fluid level indicator for light- and medium-duty engine check or check/fill applications.

Where this fits

Push-2-Seal is a practical choice when the application needs a dependable standalone dipstick or complete fluid-level system without the added locking construction of Twist2Lock.

Additional information

Available with a pull ring or special-order T-handle, UV-resistant nylon construction, custom seals, end fittings, blade markings, and formed tubing. Standard operating temperature is -40°F to +225°F.

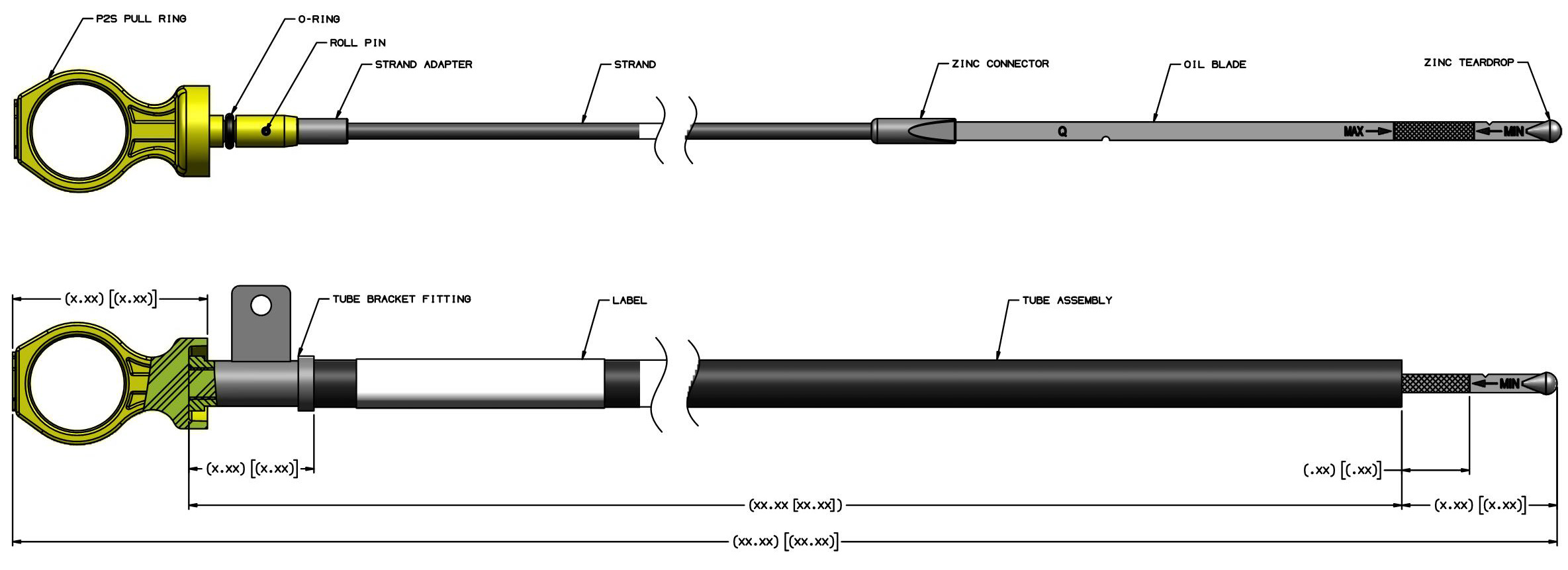

Technical drawing and dimensions for the Push-2-Seal fluid level indicator. — **Push-2-Seal technical drawing**

Custom Fluid Level Indicator

Discuss your Push-2-Seal build-out.

Contact Custom Control Cables with the application, tube size and routing, fluid type, temperature range, handle preference, and any required blade markings or end fittings.
