T-Handle Dump Body Control

T-handle dump body controls for PTO and hoist operation, available in single, dual, triple, and quad control configurations.

Where this fits

The Felsted T-Handle Dump Body Control is used to control the PTO and/or pump for dump body hoists on dump truck applications.

Additional information

These controls use a positive detent locking system, illuminated position strip, rugged housing, sealed stand, and mounting hardware for 4 and 6 Series cables. Hoist controls lock in N neutral position, and PTO controls lock in OUT position.

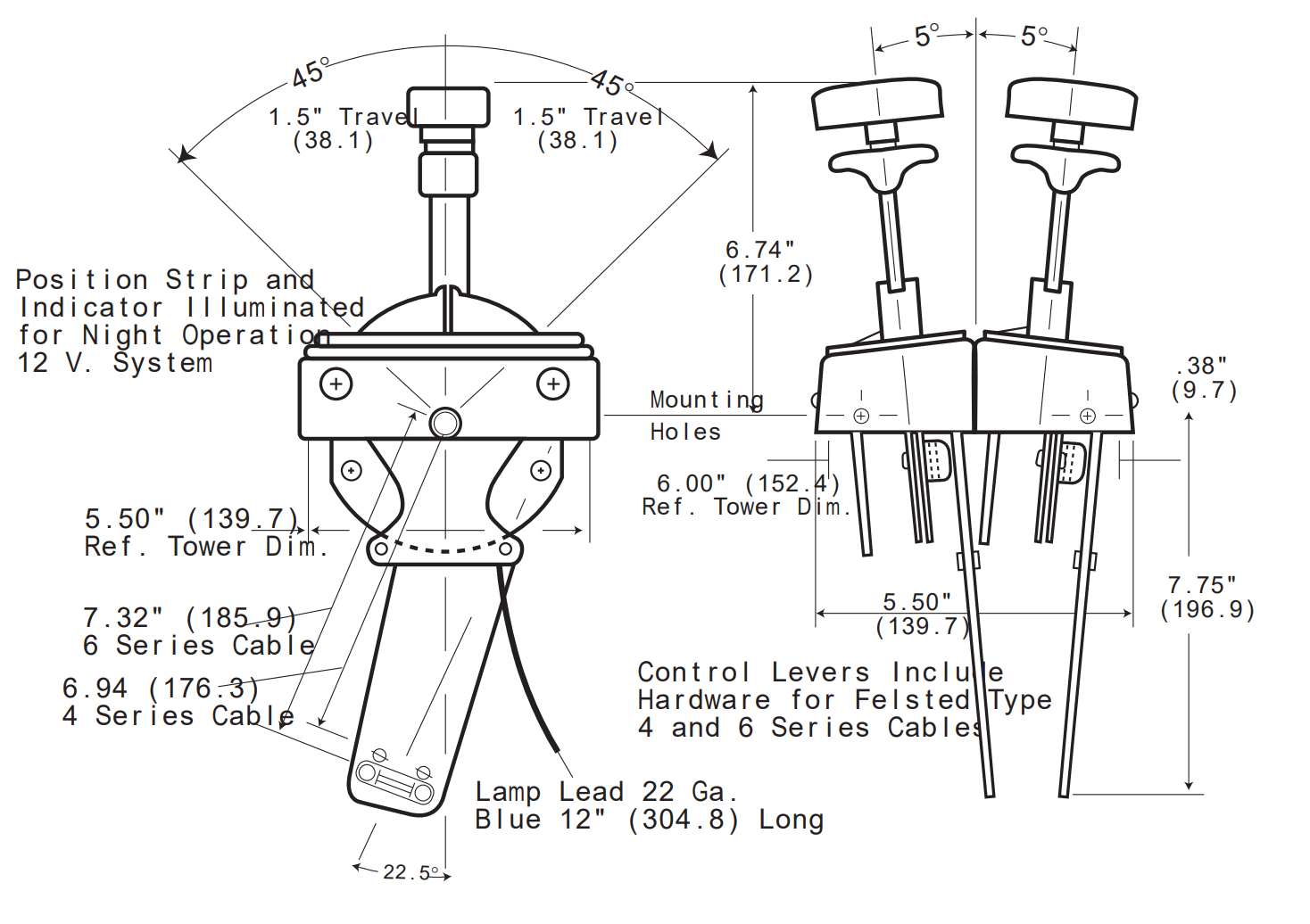

Lever travel, illumination, and cable mounting dimensions for T-handle dump body control. — **T-handle lever dimensions**

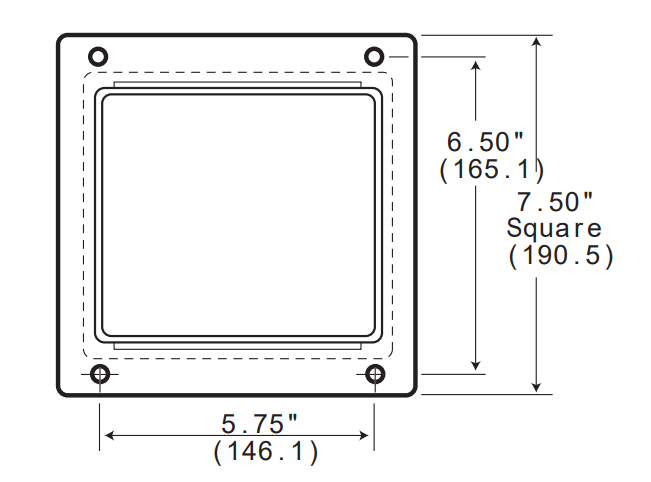

Tower bottom plate dimensions for T-handle dump body control. — **Tower bottom plate dimensions**

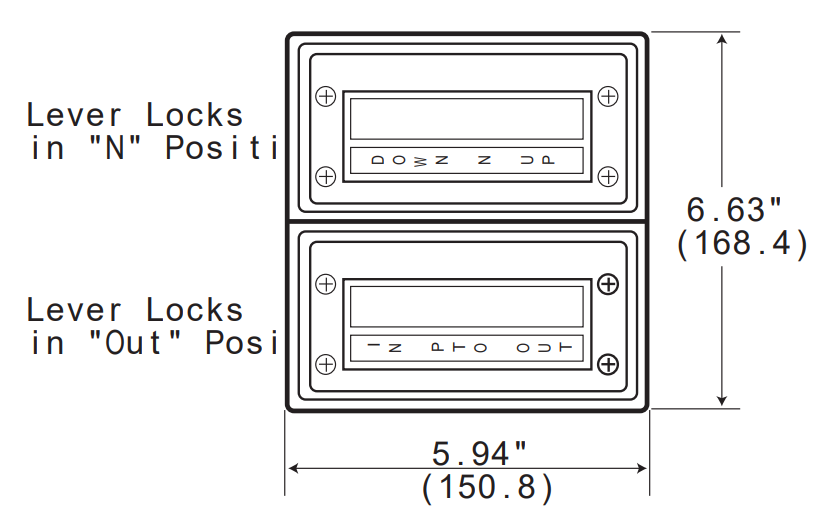

Top view dimensions and lock positions for T-handle dump body control. — **T-handle top view**

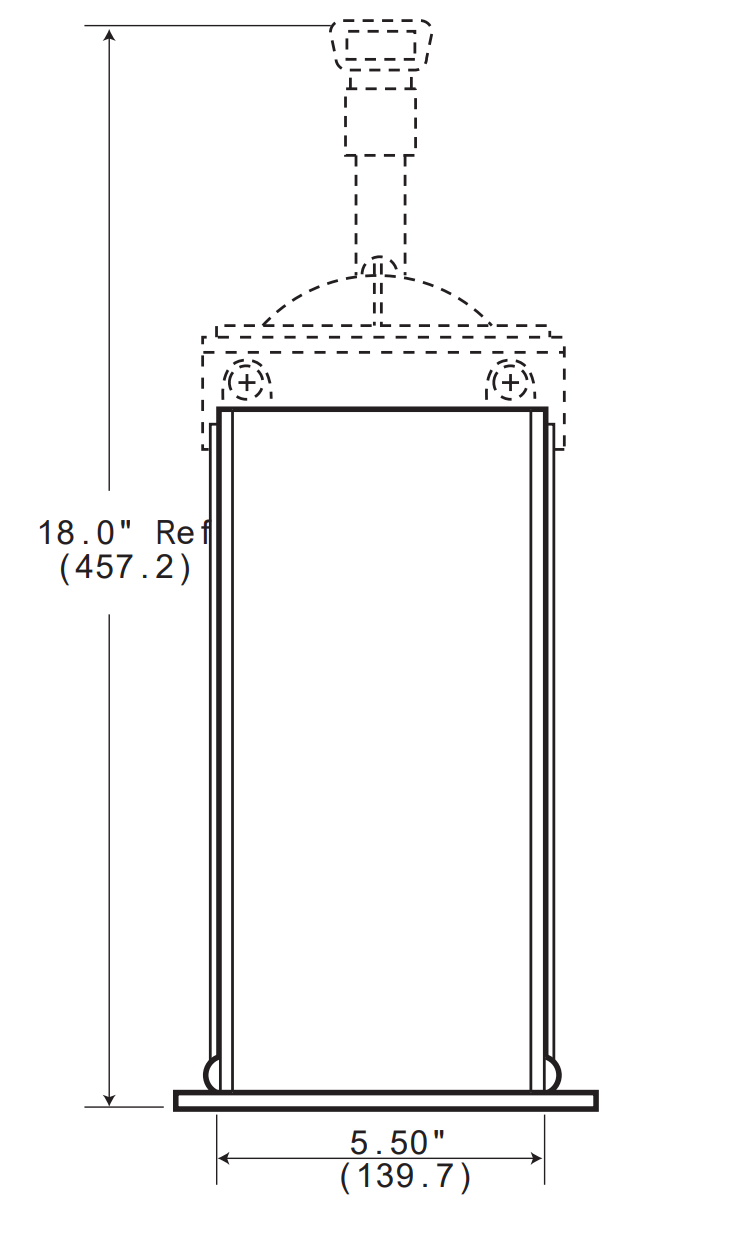

Tower side dimensions for T-handle dump body control. — **Tower side dimensions**

T-handle controls are standard as dual units and available as single, triple, and quad control units.

Factory-installed PTO switch options are available for dash light or secondary electrical function when PTO is engaged.

All controls have a maximum 3 inch standard cable travel.

Control part

Single controls

Image	Part number	Description
		PTOT-handle PTO control. Fits into 59000 tower.
		PTO with switchT-handle PTO control with switch. Fits into 59000 tower.
		HoistT-handle hoist control. Fits into 59000 tower.

Control part

Dual controls

Image	Part number	Description
		Hoist / OpenT-handle dual control. Fits into 59015 tower.
		Hoist / Muncie PTOT-handle dual control. Fits into 59015 tower.
		Hoist / Chelsea PTOT-handle dual control. Fits into 59015 tower.
		Hoist / PTOT-handle dual control. Fits into 59015 tower.
		Hoist / PTO with switchT-handle dual control with switch. Fits into 59015 tower.
		Hoist / HoistT-handle dual hoist control. Fits into 59015 tower.

Control part

Triple controls

Image	Part number	Description
		Hoist / Hoist / PTOT-handle triple control. Fits into 59016 tower.
		Hoist / Hoist / PTO with switchT-handle triple control with switch. Fits into 59016 tower.
		Hoist / Hoist / Muncie PTOT-handle triple control. Fits into 59016 tower.
		Hoist / Hoist / Chelsea PTOT-handle triple control. Fits into 59016 tower.

Accessory

Towers

Part number	Description
	Single towerSingle tower for T-handle dump body control.
	Double towerDouble tower for T-handle dump body control.
	Triple towerTriple tower for T-handle dump body control.

Accessory

Air PTO kits and accessories

Part number	Description
	Chelsea top plate and hardwareAir PTO kit, top plate and hardware only.
	Muncie top plate and hardwareAir PTO kit, top plate and hardware only.
	Single top mount flangeAccessory for T-handle dump body control.
	Single wedge mounting kit17 inch angle wedge mounting kit.

Accessory

Mount kits

Part number	Description
	Twin mount kitTwin mount kit for T-handle dump body control.
	Triple mount kitTriple mount kit for T-handle dump body control.

Cable References

Matching cables

Open the cable page with the base part pre-filled, then enter the required length.

Cable part number	Description	Notes
100-04323-Length	Bulkhead / clamp cable4 Series cable reference for T-handle dump body controls.	Build cable length on the linked Push-Pull page.
100-04333-Length	Clamp / clamp cable4 Series cable reference for T-handle dump body controls.	Build cable length on the linked Push-Pull page.
100-06323-Length	Bulkhead / clamp cable6 Series cable reference for T-handle dump body controls.	Build cable length on the linked Push-Pull page.
100-06333-Length	Clamp / clamp cable6 Series cable reference for T-handle dump body controls.	Build cable length on the linked Push-Pull page.
