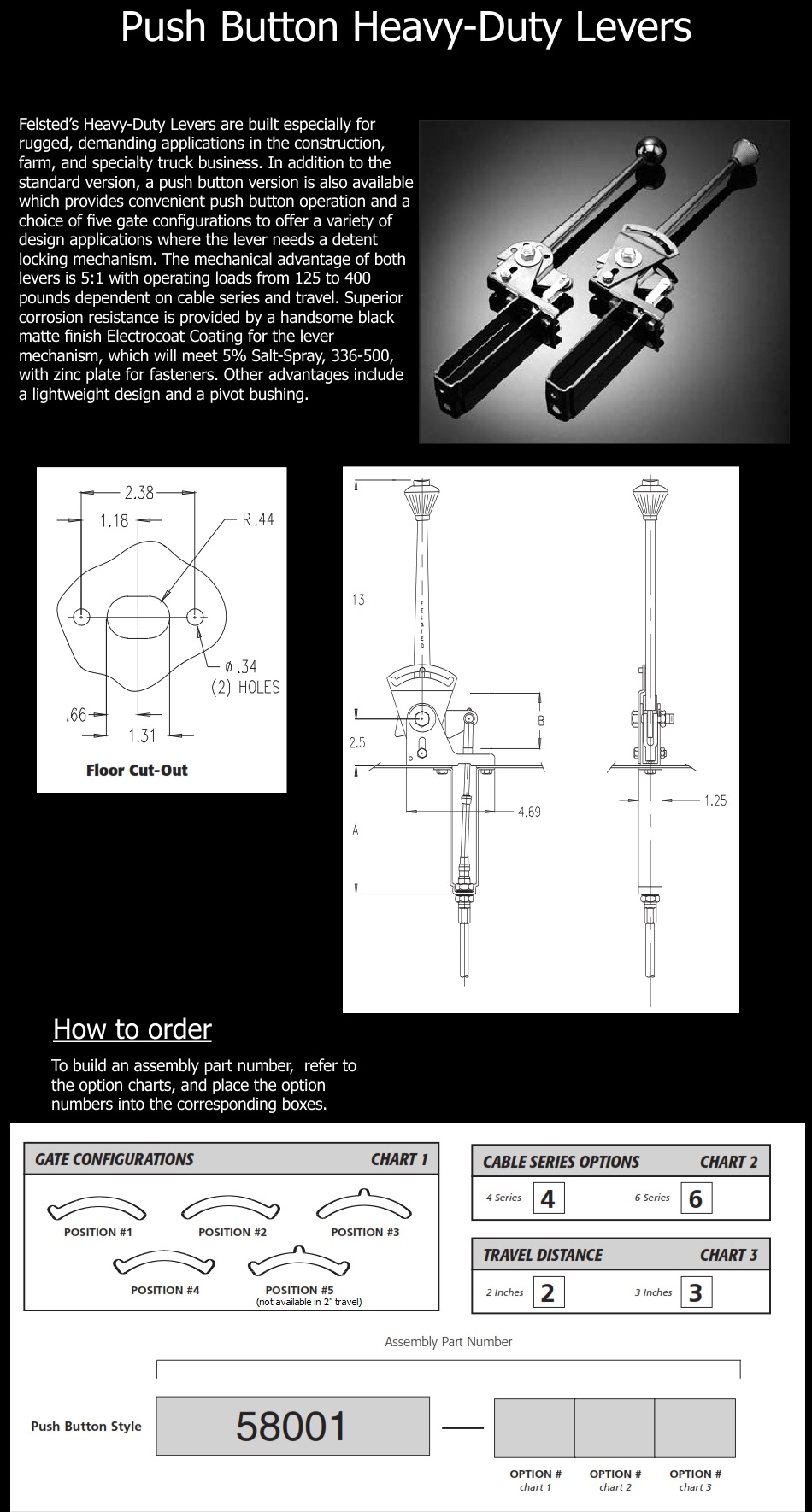

Push button heavy-duty lever controls with five gate configurations for applications that need detent locking behavior.
This reference supports push button operation with gate configurations for selected detent positions.
Build the assembly part number by choosing handle/base number, gate configuration, cable series, and travel distance. The lever provides 5:1 mechanical advantage. Cables are selected separately, and mounting dimensions match the standard heavy-duty lever.
Build-A-Part
The lever base number and chart options define the assembly part number.
Recommended Cables
Cables are not included. Cable base number and required length complete the RFQ details.
| Cable part number | Dim A | Travel dim B | Cable series | Input max load |
|---|---|---|---|---|
| 100-04222-Length | 5 1/2" | 2" | 4 | 150 lb |
| 100-04223-Length | 5 1/2" | 2" | 4 | 150 lb |
| 100-04322-Length | 7" | 3" | 4 | 125 lb |
| 100-04323-Length | 7" | 3" | 4 | 125 lb |
| 100-06222-Length | 5 1/2" | 2" | 6 | 250 lb |
| 100-06223-Length | 5 1/2" | 2" | 6 | 250 lb |
| 100-06322-Length | 7" | 3" | 6 | 210 lb |
| 100-06323-Length | 7" | 3" | 6 | 210 lb |
