Hand-operated throttle control with friction hold for equipment that needs adjustable control settings that stay in position.
Where this fits
Tough, demanding conditions on mining and construction equipment, drilling rigs, and on and off-highway equipment need a throttle control that is adjustable and stays put. The friction pad was formulated from a special material that gives the control the positive feel and settings needed, especially in an environment with vibration and contaminants. This hand operated control connects to a push-pull cable that is attached to the engine governor, or other apparatus needing variable control.
Additional information
Build the assembly part number by choosing the handle/indicator base number and option codes.

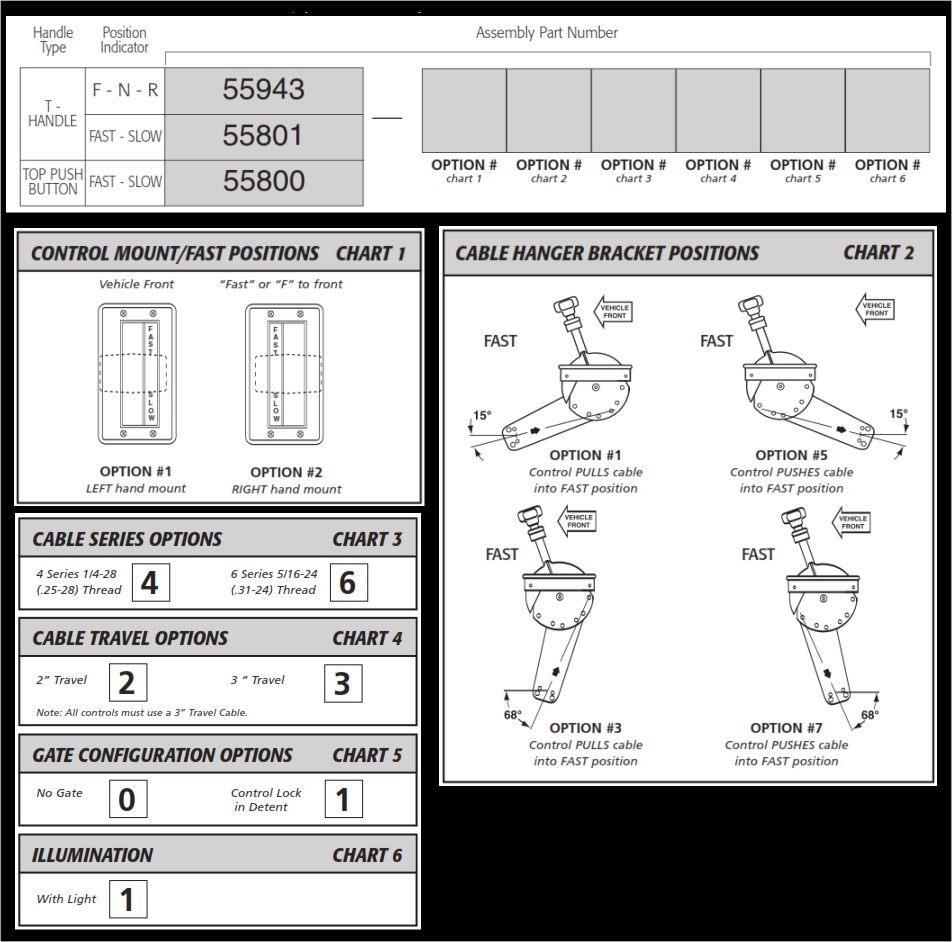

Friction throttle dimensionsFriction throttle option platesChart 1 - Control mount and FAST positionsChart 2 - Cable hanger bracket positions
Specifications
Friction throttle details
Control type
Hand-operated friction throttle control
Primary use
Throttle or variable control where the selected setting needs to stay in position
Handle options
T-handle or top push button
Position indicators
FAST-SLOW or F-N-R, depending on selected base number
Cable series options
4 Series or 6 Series
Travel options
2 inch or 3 inch control travel
Review the reference drawings and selected option codes before submitting the assembly for RFQ.
Build-A-Part
Build friction throttle assembly
The control base number and chart options define the assembly part number.
?????-??????Complete before adding to quote. Missing: base control, mount position, ...
Base control
Chart 1: Mount position
Chart 2: Cable hanger position
Chart 3: Cable series
Chart 4: Cable travel
Chart 5: Gate configuration
Chart 6: Illumination
Catalog note: controls shown with 2 inch or 3 inch control travel use a 3 inch travel cable.
Need the Cable?
Build the matching push-pull cable.
Build the matching 4 Series push-pull cable when the throttle control uses the 4 Series cable option.
Build the matching 6 Series push-pull cable when the throttle control uses the 6 Series cable option.
