PTO Cables
Power Take Off Cable
PTO cable with red knob, .093 solid stainless steel core, full 5 inch travel, and fixed base number.
Where this fits

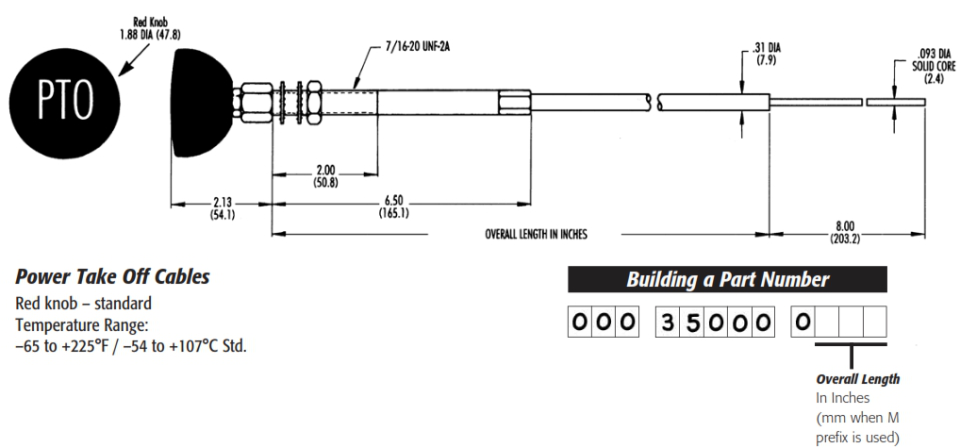

This standard PTO cable uses the red knob PTO control layout shown in the drawing.
Additional information
The PTO part number uses a fixed base number and overall length. Confirm routing, length, and whether the red knob assembly matches the application.
Specifications
Power Take Off Cable dimensions
- Core
- .093 solid stainless steel core
- Thread
- 7/16-20standardMetric length with M prefixmetric
- Bend radius
- 6" bend radius
| Travel | Core |
|---|
| in | in |
|---|
| 5.0 | .093 solid stainless steel core |
|---|
Full 5" travel.
Red knob is standard.
Temperature range: -65 to +225°F / -54 to +107°C standard.
Build-A-Part-Number
PTO Cable Interactive Cable Builder
Enter the overall length for the fixed PTO cable base number.
000-35000-0???Complete before adding to quote. Missing: length
Base prefix000
-PTO base number35000
-Length prefix0
Quick Entry
Use the fields to manually input part number values if you know them.
