Heavier-duty 3 Series Quick Disconnect cable for serviceable manual controls requiring a stronger assembly while keeping a compact cable size.
This series pairs a quick disconnect head with the smaller heavy-duty 3 Series threaded output end.

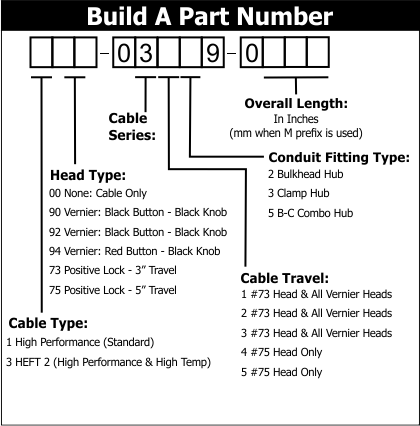

Build the part number from cable type, head type, 3 Series code, travel, conduit fitting type, and length.

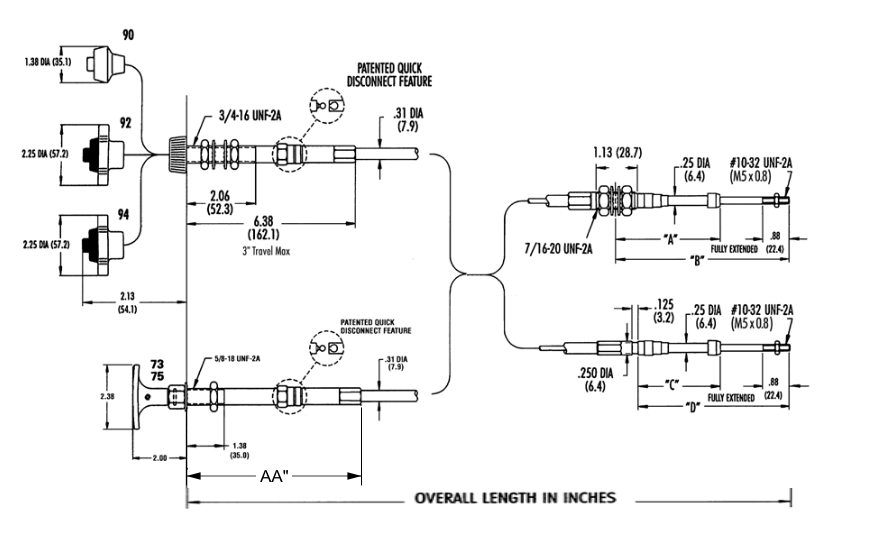

Specifications
Vernier heads use the Quick Disconnect head construction and are used with 3 inch cable travel.
| Head code | Head option | Cable travel | Head length |
|---|---|---|---|
| Code | Description | in (mm) | in (mm) |
| 90 | Vernier, black button, black knob | 3.0 (76.2) max | 1.38 (35.1) |
| 92 | Vernier, black button, black knob | 3.0 (76.2) max | 2.25 (57.2) |
| 94 | Vernier, red button, black knob | 3.0 (76.2) max | 2.25 (57.2) |
Quick Disconnect Positive Lock heads are available as 3 inch and 5 inch travel heads. Shorter cable travel uses the next matching head and moves less.
| Head code | Positive Lock head | Cable travel | DIM AA |
|---|---|---|---|
| Code | Head travel | in (mm) | in (mm) |
| 73 | 3 inch travel head | 1.0 (25.4) | 6.50 (165.1) |
| 73 | 3 inch travel head | 2.0 (50.8) | 6.50 (165.1) |
| 73 | 3 inch travel head | 3.0 (76.2) | 6.50 (165.1) |
| 75 | 5 inch travel head | 4.0 (101.6) | 8.50 (215.9) |
| 75 | 5 inch travel head | 5.0 (127.0) | 8.50 (215.9) |
| Travel | DIM A | DIM B | DIM C | DIM D |
|---|---|---|---|---|
| in (mm) | in (mm) | in (mm) | in (mm) | in (mm) |
| 1.0 (25.4) | 3.00 (76.2) | 4.94 (125.5) | 2.31 (58.7) | 4.25 (108.0) |
| 2.0 (50.8) | 4.00 (101.6) | 6.94 (176.3) | 3.31 (84.1) | 6.25 (158.8) |
| 3.0 (76.2) | 5.00 (127.0) | 8.94 (227.1) | 4.31 (109.5) | 8.25 (209.6) |
| 4.0 (101.6) | 6.00 (152.4) | 10.94 (277.9) | 5.31 (134.9) | 10.25 (260.4) |
| 5.0 (127.0) | 7.00 (177.8) | 12.94 (328.7) | 6.31 (160.3) | 12.25 (311.2) |
Load rating: maximum 20 lb recommended.
4" and 5" travel are only available with #75 Positive Lock head.
Build-A-Part-Number
Select standard or metric length format, then choose cable type, head type, travel, conduit fitting type, and overall length.
Use the fields to manually input part number values if you know them.
Enter value in whole numbers to complete part number.
Need Hardware?
Browse the cable hardware page for 3 Series cable hardware, including clevises, ball joints, pivots, clamps, clip brackets, terminal eyes, stop collars, shims, slip link kits, and field hub kits.
